EC-OP-K and EC-400 Series Pumps
The EC-OP-K series and the EC-400 series removes condensate from ductless mini split wall and ceiling mounted air conditioners and fan coiled air conditioning equipment.
EC-OP-K SERIES FEATURES:
- Works with units up to 34,000 BTU
- Clear reservoir for inspection
- 176°F thermal protection
- Alarm ready
- Easy to install mounting bracket
- Pump float retainer for easy service
- Quiet operation
- Service without removing from wall
- Requires no space inside the wall mount AC
- cCSAus listed

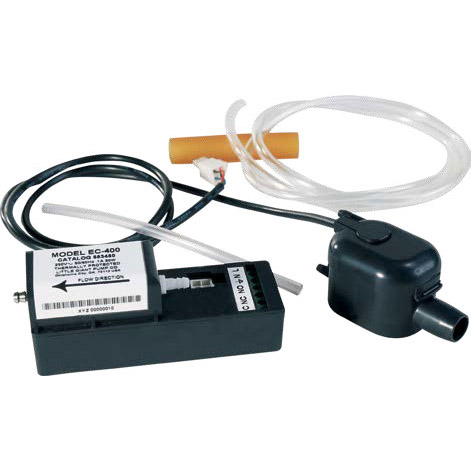

EC-400 SERIES FEATURES:
- Compact two piece design
- Reliable on/off and safety overflow detection
- Wall, suspended ceiling, floor mount
- For intermittent operation-50% duty cycle
- Self-priming
- Use with units up to 25,000 BTU/hr
- cCSAus listed
EC-OP-K Series - Mini-Split/Ductless Applications
Item No. | Model | Volts | Hz | Amps | Watts | Shut- Off (ft) | PSI |
---|---|---|---|---|---|---|---|
553712 | EC-OP-K | 230 | 50/60 | 0.1 | 20 | 34.77 | 15 |
EC-400 - Mini-Split/Ductless Applications
Item No. | Model | Volts | Hz | Amps | Watts | Discharge Size | Suction Lift | Max Flow (GPH) | Shut- Off (ft) | PSI |
---|---|---|---|---|---|---|---|---|---|---|
553455 | EC-400 | 115 | 60 | 0.24 | 19 | 5/32” | 3’ | 2 @ 2’ | 35 | 1.17 |
553458 | EC-400 | 230 | 50/60 | 0.1 | 20 | 5/32” | 3’ | 2 @ 2’ | 35 | 1.17 |
