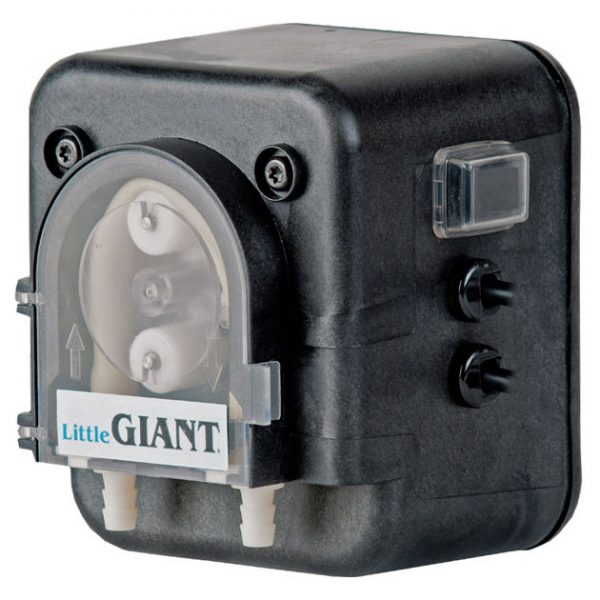

Peristaltic Series Pumps
Self priming pump that removes condensate from ductless mini-split wall mount, cassette air conditioners and fan coils. Not affected by dust, bacteria, mold or other airborne particles that can be found in condensate water.
TPS: pump is connected directly to air conditioner and operates when AC on
TPT: pump is controlled by changes in temperature of the air moving through the AC coil
TPR: pump is controlled by float-operated switches-activates when water enters float reservoir
Peristaltic Series
Item No. | Model | Volts | Hz | Amps | Watts | Shut- Off (ft) | Suction Lift (ft) | Max Flow (lbs) |
---|---|---|---|---|---|---|---|---|
553674 | TPS | 230 | 50/60 | 0.6 | 13 | 46 | 6.5 | 2.5 |
553675 | TPT | 230 | 50/60 | 0.6 | 13 | 46 | 6.5 | 2.5 |
553676 | TPR | 230 | 50/60 | 0.6 | 13 | 46 | 6.5 | 2.5 |
